These precision squares are made by Kinex to Accuracy Class 0 according to DIN 875/0. Their accuracy is several times better than many other high accuracy woodworking squares. Unlike some of the other stainless steel Kinex squares we carry, these squares are made of hardened steel, so they do need to be protected from corrosion - they are shipped with a grease coating, inside of a bag, along with a foam lined cardboard box, except for the largest size which comes in cardboard box.
We stock seven sizes of this line of squares:

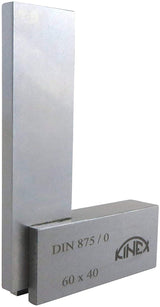

60 mm x 40 mm, with 16 mm wide x 3 mm thick blade, and 16 mm wide x 9 mm thick base. Accuracy Class 0 to DIN 875 is equivalent to a squareness of better than 0.007 mm (0.00028") along the entire length of the square.

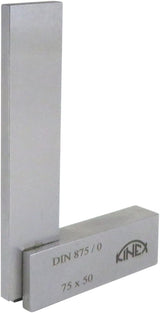

75 mm x 50 mm, with 16 mm wide x 3 mm thick blade, and 16 mm wide x 9 mm thick base. Accuracy Class 0 to DIN 875 is equivalent to a squareness of better than 0.007 mm (0.00028") along the entire length of the square.

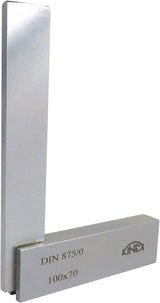

100 mm x 70 mm, with 16 mm wide x 3 mm thick blade, and 18 mm wide x 9 mm thick base. Accuracy Class 0 to DIN 875 is equivalent to a squareness of better than 0.007 mm (0.00028") along the entire length of the square.

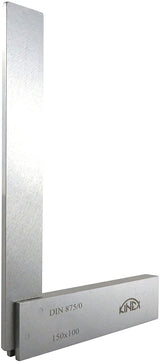

150 mm x 100 mm, with 20 mm wide x 3 mm thick blade, and 23 mm wide x 10 mm thick base. Accuracy Class 0 to DIN 875 is equivalent to a squareness of better than 0.008 mm (0.00031") along the entire length of the square.

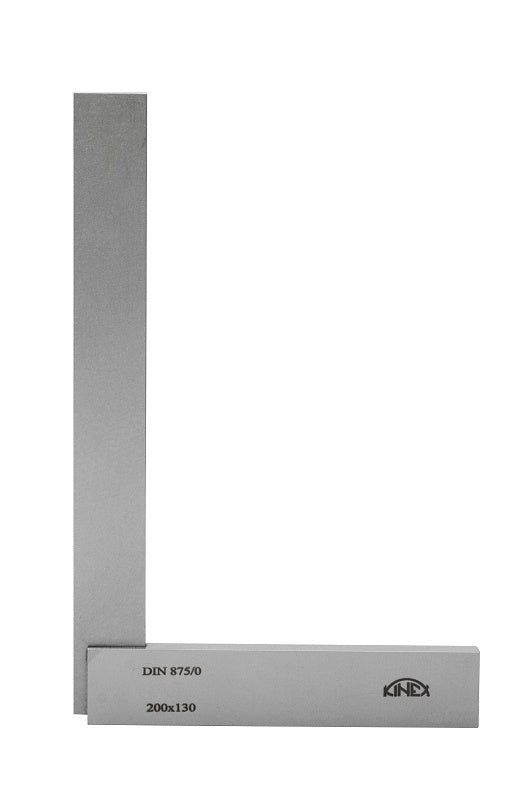

200 mm x 130 mm, with 22 mm wide x 3 mm thick blade, and 25 mm wide x 10 mm thick base. Accuracy Class 0 to DIN 875 is equivalent to a squareness of better than 0.007 mm (0.00028") along the entire length of the square.
300 mm x 200 mm, Accuracy Class 0 to DIN 875 is equivalent to a squareness of better than 0.011 mm (0.00043") along the entire length of the square.
500 mm x 330 mm, Accuracy Class 0 to DIN 875 is equivalent to a squareness of better than 0.015 mm (0.00059") along the entire length of the square.
